ASEPTIC BRICK FILLING LINE TURNKEY SOLUTION

Cost- and energy-efficient systems are in demand for filling Aseptic brick product that are additionally characterized by high flexibility with regard to the line layout and the variety of container types. With our filling systems for filling aseptic beverages and dairy product in carton brick, you are optimally positioned as we ensure that the focus is on cost-efficient production in this low margin business sector.

ANALYSIS

With our many years of experience in plant engineering, together with you, the customer, we develop tailor-made systems that are perfectly matched to your individual specifications. We naturally also always take your plant environment into account alongside the concrete components that are to be included in your new system.

CONCEPT

Creativity and expert knowledge are the prime components of line design. Aided by digital concept tools, such as traditional 2D and 3D CAD drawings, we can develop an effective system for you.

CONSULTANCY

We provide you with our competent consultancy services both during and after the entire planning process. Throughout we give you constant advice on line optimization, on how to achieve the best possible utilization levels.

FLOW CHART

6000BPH 1000ml & 7500BPH 250ml Aseptic Brick Filling Line Layout

CHOOSE A MAIN PRODUCT

Blocking

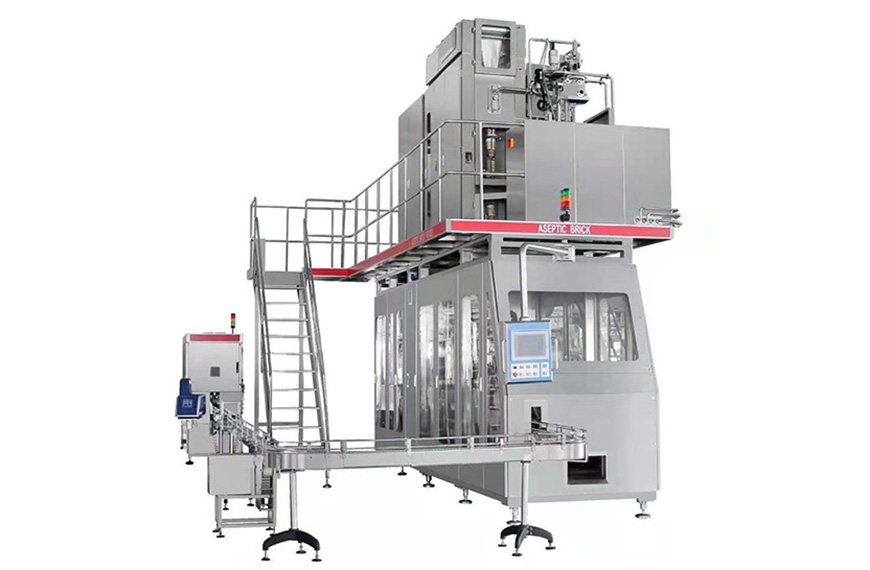

High-Speed Aseptic Brick Filling Machine

Machine Characteristics
This high-performance aseptic brick filling machine delivers industry-leading throughput, enhanced reliability and low total cost of ownership for aseptic beverage packaging. It is suited for milk, juice, dairy drinks and other sensitive beverages in brick-style packages.

High Throughput Production Efficiency
Built with an advanced crawler drive mechanism that overcomes the speed bottleneck of conventional aseptic brick fillers, the machine reaches a production rate of over 16,000 packs per hour. It delivers more than double the output of standard low-speed models while consuming the same volume of water, electricity, gas, steam and labor input, drastically lifting overall line productivity.

Reliable, Safe & Durable Operation
- Simplified mechanical architecture with fewer pneumatic components and no hydraulic system reduces potential failure points for a low fault rate
- Critical functional sections use robust structures and proven control logic for smooth, dependable long-run performance
- Reinforced aseptic system parameters and extended packaging material sterilization cycles deliver higher aseptic safety
- No reciprocating motion or impact loading, paired with automatic grease lubrication, ensures steady running and extended component service life

Low Operating Costs & Material Savings
- High-frequency electromagnetic heating is applied across packaging splicing, strip feeding, vertical sealing and horizontal sealing, delivering high thermal efficiency, low power draw, reliable bonding and zero emissions
- Automatic positioning and splicing of packaging materials and PP strips runs without line stoppage, with fast pattern correction to minimize consumable waste
- Optional high-speed buffer stores product temporarily during downstream equipment faults, eliminating unnecessary downtime and production loss
- Total operating costs — including spare parts, energy and labor - are significantly lower than both low-speed machines and comparable premium high-speed aseptic fillers

User-Friendly Operation & Maintenance
- PLC-based automatic control eliminates excessive manual inspection, setup and adjustment. Fault monitoring, parameter configuration and real-time status tracking are all accessible via the HMI screen, reducing reliance on skilled operators
- Individual horizontal seal units can be easily disassembled separately for repair and maintenance
- Non-contact power supply for high-frequency horizontal sealing is wear-free and maintenance-free, with extended service life and high reliability
- Electromagnetic liquid level sensors monitor fill levels with no moving parts, avoiding unnecessary wear and component failure
- Replacement parts fit directly into original positions without extensive adjustment or calibration
- All components are manufactured in-house or sourced with dedicated inventory, ensuring timely spare parts supply

Flexible Design & Strong Traceability
- Modular construction and flexible layout adapt to nearly all standard brick package specifications
- Compact footprint occupies less than half the floor space of low-speed machines with equivalent capacity
- Integrated inkjet control marks each brick package with its corresponding horizontal seal jaw number, enabling fast, accurate troubleshooting and full product traceability
- Delivers superior cost performance versus both entry-level and premium high-speed aseptic filling systems, with reliable operation, simple usability and low running costs
