Juice Filling Line

Whatever drink you want to fill - beer, water, soft drinks, spirits, sparkling wine or wine, coffee or tea, still or with CO2, hot or cold - we will find the right solution for you. You can also use any containers you like; from glass bottles and PET to cans to kegs, we have the systems expertise to meet any requirements.



From the precise analysis of your individual requirements through a concrete concept for your future system to professional consultancy and reliable support.



All of our lines are equipped with high-quality, technologically sophisticated single machines and process components: Whether you prefer a standardized solution or an individual solution, come and talk to us and we will be happy to help!



Expertise, sustainability, partnership, and proximity: this is what we understand by Turnkey system planning!

JUICE FILLING LINE TURNKEY SOLUTION

If you need to fill popular thirst-quenchers at the highest level of quality, you need sophisticated technology. From the gentle and foamless deaeration process to precise concentrate handling and hot filling, our innovative process technology actively supports you during each stage of the filling process. Naturally, all parameters are aligned as closely as possible to the requirements you have specified; after all, we understand the challenges you face and provide you with first-class, user-optimized solutions.

ANALYSIS

With our many years of experience in plant engineering, together with you, the customer, we develop tailor-made systems that are perfectly matched to your individual specifications. We naturally also always take your plant environment into account alongside the concrete components that are to be included in your new system.

CONCEPT

Creativity and expert knowledge are the prime components of line design. Aided by digital concept tools, such as traditional 2D and 3D CAD drawings, we can develop an effective system for you.

CONSULTANCY

We provide you with our competent consultancy services both during and after the entire planning process. Throughout we give you constant advice on line optimization, on how to achieve the best possible utilization levels.

DEMONSTRATION LAYOUT
CHOOSE A MAIN PRODUCT
  •

    B 水机吹灌旋一体机



    Good to know

    The block features a space-saving design and compact blow station layout. The production of high-stability, low-weight PET bottles is combined with the filling and capping steps to create a smoothly functioning line. With the Speed-Loc quick-change system, changeover can be performed very quickly with minimal effort. The stretch blow molder/filler monoblock is designed for large production lines and has a maximum output of 48,000 PET bottles per hour.



    Well thought out

    Connecting the blow molder directly to the filler produces enormous savings, because this design eliminates the need for the air conveyor, the feed plate and the bottle rinser. Not only that, because the bottles flow directly through the machine which can easily handle very light-weight preforms and bottles. A multifunction star located at the interface between the two machines compensates for the differences in spacing between the blow molder and the filler. An airlock with a directed flow of air reliably separates the "dry" packaging area (blow molder) from the “wet” filler area.



    Convincing

    • Modular, space-saving design for maximum flexibility
    • Integrated airlock keeps dry areas separated from the wet surroundings
    • Minimal energy consumption combined with maximum performance



    Sustainable

    • Excellent handling characteristics maximize machine availability
    • Low water consumption in the cooling circuit helps you conserve resources
    • Excellent control system technology reduces your scrap rate



  •

    2



    One stage R.O. Water treatment

    Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→ Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling



    Two stage R.O. Water treatment

    Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→ Activated Carbon Filter→ 5 Micron Filter→1 Micron Filter→High Pressure Pump→ Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→Secondary High Pressure Pump→Secondary Reverse Osmosis Device→Ozone Mixer→ Pure Water Pump→Pure Water Tank→External Supply Pump→ Titanium Tube Filter→External Supply→ To Filling



    3

    Good to know
    The syrup rooms have many areas of application range from sugar dissolvers and syrup flash pasteurizers through batchmix systems and mixing tanks to precision syrup manufacture. We always offer our customers customized syrup room systems specifically tailored to meet individual requirements. Use our syrup rooms to manufacture carbonated and non-carbonated beverages, juice, syrup, soda pop, juice spritzers, mixed alcoholic beverages, and energy drinks with great ease.

    Well thought out
    Both recipe-controlled product manufacture in the syrup room and the use of the shortest possible conveying routes avoid costly product loss in the long term. Recipe management and beverage-specific production processes ensure that you always produce high-quality goods. For integrated processes the syrup room can also be fully automated without any problem.

    Convincing
    • Versatile and thus suitable for various different applications
    • l Optimum production of finished beverages and syrups for further processing, also of those containing pieces of fruit and fibers
    • l Tailor-made systems for individual customer requirements

    Sustainable
    • l Minimize your product loss in the long term thanks to recipe-controlled product manufacture and the use of the shortest possible conveying routes
    • l High heat recovery levels minimize your energy consumption



  •
    4

    Mechanical type Hot Filling Valve design is suitable for non-carbonated beverages, juice, syrup, mixed alcoholic beverages, and energy drinks with production capacity from 4000BPH to 30000BPH based on 500ml. Up to 2000ml.

    The filler is available as you require - as a single machine, monoblocked with a bottle rinser or stretch blow molder.

  • Bottle tilting conveyor
    After the bottle has been capped, its head-space is sterilized, by bringing the bottle to a horizontal position and thus enabling the product at a temperature of 85 degrees Celsius to fill the entire head-space.

    1

    Spray Cooling Tunnel

    Temperature is crucial for achieving quality in beverage production – and this applies to several factors:

    The temperature changes the colour and taste of a beverage. It determines the shelf life of a product. It influences how filled containers can be labelled and packed.

    With our systems for product and container treatment you can make the temperature work for you. For pasteurisers, heaters and chillers create an individual climate for each product, one which is exactly adjusted to suit the individual processing step:

    With our product and container treatment system:

    • sensitive beverages can be pasteurised gently and reliably.
    • hot-filled products can be cooled down gently.
    • cold-filled containers are heated for the packing and labelling process.

    2

  •
    333

    Hot Glue Labeling Machine
    Rotary labeler is suitable for labeling bottled drinking water, juice, carbonated soft drinks etc. with production capacity from 20000BPH to 60000BPH based on 500ml. Up to 2000ml.

    Less Glue Consumption
    Rotary labelers for the application of wrap-around pre-cut paper and/or plastic labels. The labelling unit, thanks to the use of an industrial Hot Melt applicator, allows a considerable saving of glue compared to traditional systems. The format changeover operations do not require the use of tools, thus becoming extremely easy and fast.
    • High ergonomics allow easy access to all parts of the machine and a significant reduction in maintenance times
    • Operating system with Nordson technology allows for the application of labels with significant glue savings
    • Optimum packaging thanks to the device that sprays some points (or strips) of hot glue on the container, which picks up the label from the magazine; the diffuser then applies the glue to the last vertical edge of the label. A smoothing system completes the process.
    • Fast and efficient format changeover thanks to the high ergonomics of its structure; simple and fast procedures with the possibility to perform updates via HMI interface
    • Possibility of installing the labeller in various configurations and with two glue pumps, depending on the available dimensions and the required speeds. Possibility to configure the labeller in line or in parallel.
    • Very high production standards (up to 60 thousand applications per hour), non-stop production, extreme ease of use for operators.

    444

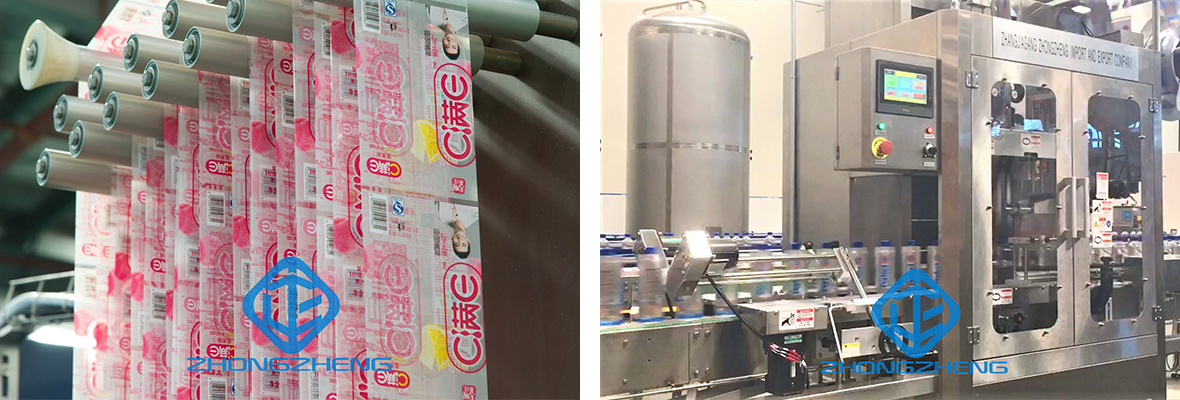

    Shrinkable sleeve labeling machine
    is suitable for labeling bottled drinking water, juice, carbonated soft drinks etc. with production capacity from 6000BPH to 24000BPH based on 500ml. Up to 2000ml.
    Special sleeve supply unit is an option for high-speed production line request and low labor request.

    5




  •
    D carton wrapping machine

    Carton Packing machine
    is suitable for packing bottled drinking water, juice, carbonated soft drinks etc. with production capacity from 20packs/min to 80packs/min.

    • Adopts side bottle-feeding way, area is small, simplify the conveying system, reduce the whole line equipment investment cost.
    • Adopts rocker arm institution, structure is more advance and reasonable, action is more light & stable, consumption is also small.
    • Adopts multi-level decompression bottle-feeding way, avoid bottle-falling phenomenon, assure the bottle-grab align accurately with the product, high in stability.
    • Comply with the national safety standards, with a variety of protection functions, alarm timely when there appear faults, can shutdown to protect.

    D film shrink packing machine

    Shrink Film Wrapping machine
    is suitable for packing bottled drinking water, juice, carbonated soft drinks, dairy product etc. with production capacity from 20packs/min to 80packs/min.
    With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.

    Character
    • The constant temperature membrane heat binding secure the seal.
    • The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.
    • The PLC control with stable and reliable performance.
    • The original imported guide bar cylinder guarantees correct operation and durable.
    • The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss. All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
    • The Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.3 layers of heat insulation treatment with good insulating property, quick temperature rise and energy saving.
    • The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.
    • It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.


  •
    6

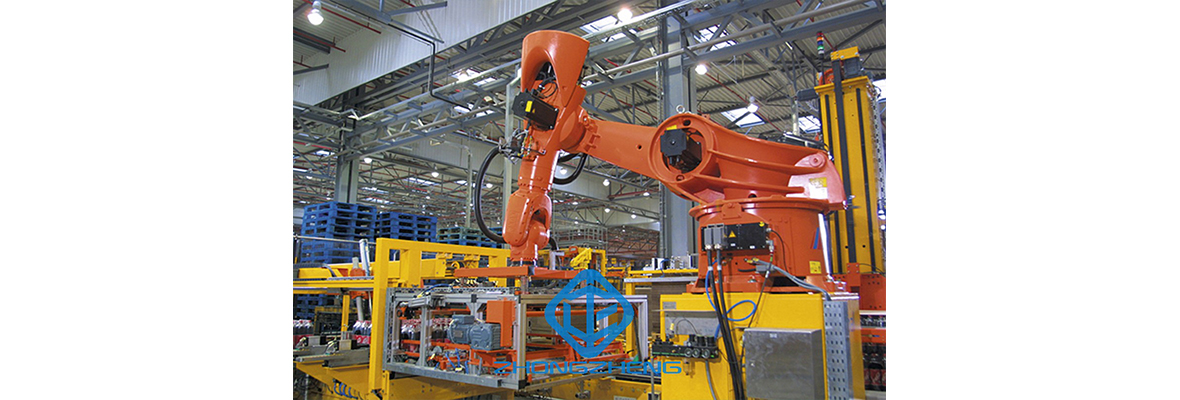

    Palletizing robots
    which contribute to the robotization of the palletizing system has a compact body and a high throughput. It is suitable for packing bottled drinking water, juice, carbonated soft drinks etc. with production capacity up to 520layer/h.
    Suitable robot models can be selected according to the work pieces. Payload 110kg,140kg, 185kg,315kg, 500kg, 700kg.

    Good to know
    The palletizing robot gives you flexible and accomplished support in a working range of up to 180°. Its endless range of possible variations and applications knows virtually no bounds. When processing non-returnable packaging the palletizing robot is fitted with a roller cage, for example, whereas gripper heads are used with returnable packaging. It is outstandingly suitable for processing high-wall and low-wall plastic crates, kegs, slim kegs, barrels, cartons, trays (with and without film), shrink packs, individual packets and bags.

    Well thought out
    The 3-axis robot not only carries out pre-programmed tasks in a reliable manner. Reprogramming for new situations can also be undertaken quickly and without difficulty. And the combined processing of non-returnable and returnable packaging also presents no problems. This enables you to save considerable investment costs and at the same time simplify your working processes.

    Convincing
    • The base minimized the robot maximum height, it is suitable for low ceiling location.
    • Consistent modular design enables flexible changing of palletizing and depalletizing tasks
    • High system availability thanks to optional semi-automatic format changeover
    • Cost reducing thanks to up to 98% machine availability
    • Sustainable
    • Conserve resources with the intelligent energy management system for energy recovery
    • Minimize maintenance effort by using the latest robot technology
    • Benefit from low space and energy requirement

    7

    Pallet wrapping machine
    It is suitable for wrapping bottled drinking water, juice, carbonated soft drinks etc. with production capacity up to 520layer/h.



  • /Conveyor-Technology-pl3794112.html
    1

    2


    Bottle conveyor system, Pack conveyor system, Pallet conveyor system is suitable for bottled drinking water, juice, carbonated soft drinks etc. with production capacity from 4000BPH to 60000BPH based on 500ml. Up to 2000ml.


    Good to know
    Processes which are matched to one another like clockwork are the be-all and end-all of beverage filling. Transportation and conveying equipment plays a particularly important role here - after all, it is responsible for making a functioning, perfectly matched system from a collection of individual machines. The conveyor actively helps in transporting products and placing them in magazines with pinpoint accuracy. As well as non-returnable and returnable packaging such as plastic crates and returnable plastic displays, you can also convey cartons, trays and foil packs reliably to their destination. In addition, the decentralized control components ensure that you can control and regulate every single conveyor segment separately. As a result, the frequency-controlled drives adapt themselves perfectly to the particular operating state of your machine, thus enabling soft deceleration and jerk-free conveying which is gentle on the packaging.

    Well thought out
    The integrated speed control ensures minimum product wear while at the same time providing optimum machine performance. As well as the individual adaptation options afforded by its modular system, it simultaneously forms the basis of a safe and controlled throughput of your product streams. In addition, special attention has been paid in the design to its hygienic advantages. All segments of the conveyor system are made from stainless steel or other non-rusting material, which results in particularly long life and hygienic advantages. In addition, the automatic railing adjustment ensures short changeover times and therefore high system efficiency.

    Convincing

    • Consistent modular design ensures high flexibility
    • Standardized modular system with different hygiene designs
    • Product stream tracking system for high efficiency and availability



    Sustainable

    • Benefit from low energy consumption thanks to variable centralized or decentralized drive concepts with high-efficiency drives
    • Treat materials gently, without contact and with low noise thanks to the chain mat turner with differential speed
    • Ensure consistent and practically maintenance-free operation with line distribution systems with cog belts

    READ MORE >
