1. Introduction

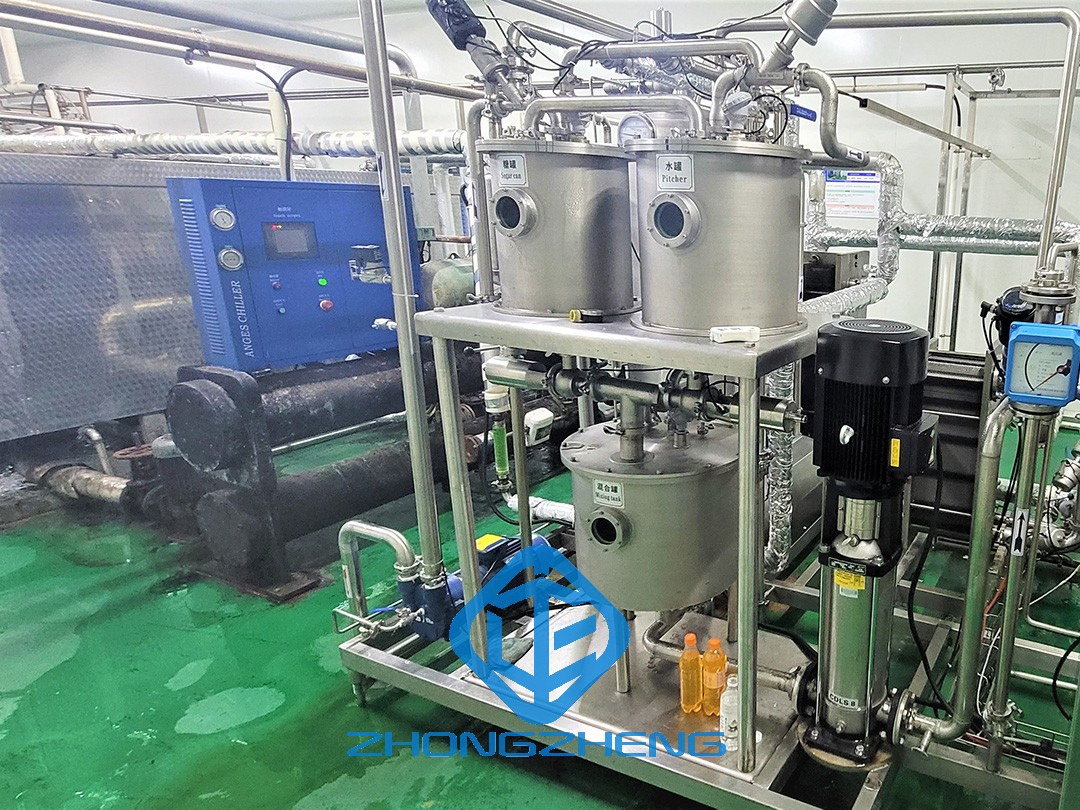

Mixer-10 beverage mixer has the advantages of reasonable structure, high mixing accuracy, twice carbonation and high CO2 content. It is mainly suitable for mixed processing of various carbonated beverages and other soft drinks.
2. Characteristic
Excellent material and precise processing:
All parts in contact with beverages are made of high-quality stainless steel, and the inner and outer surfaces are polished to meet the international food hygiene requirements.
High degree of automation, stable operation:
The whole process of production and operation is controlled by a computer, and the operation is stable. If a fault occurs, the alarm device will prompt and stop automatically.
Easy to operate and adjust:
The normal operation of the machine can be realized by starting buttons in sequence according to the prescribed procedure, and the production capacity or the mixing ratio of water and sugar can be adjusted conveniently without replacing any parts.
Mixing uniformly and accurately:
Because of the advanced technology of one-time mixing, the mixing is uniform, and the mixing ratio of water and syrup is strictly controlled by a metering device with fine-tuning function, and the mixing accuracy can reach within (+1%).
CO2 content is high:
This machine uses displacement method to deoxidize and carbonize twice, so the product has high gas content, which can reach 3.8 times.
Hygienic structure, easy to clean:
The machine adopts a closed system made of stainless steel, equipped with a device to meet the CIP in-situ cleaning of equipment and pipes for disinfectant and hot water cleaning, thus ensuring that the drinks produced by the machine meet the hygienic requirements.
3. main parameter
Capacity (rated): 10 t/h
Mixing ratio range of water-syrup: 3:1-6:1
Product gas content (multiple): 1.5-4.0 (adjustable)
Finished Product Temperature: <4℃
Power consumption: about 7 KW
Carbonate consumption: 5 m3/h
Compressed air consumption: 4 m3/h
Standard supply pressure (normal working conditions):
(1) Drinking water (purified water) 0.25-0.35 MPa, room temperature, 25℃
(2) Syrup (or fruit juice, etc.) 0.10-0.15 MPa, room temperature, 25℃
(3) Carbonate gas (CO2) 0.8-1.0 MPa
(4) Compressed air 0.5-0.8 MPa
(5) Refrigerant 0.20-0.30 MPa, -8℃
Outward Size: (Length X width X height) 2600X2000X2800 (mm)
Net weight: ≈4.5 t
4. Main configuration
S/N | Name | Qty. | Technology configuration |
1 | Sugar / water control valve | each1 | Shanghai Yuan an |
2 | Sugar tank. Water tank. Carbonation tank. Degassing tank. Finished product tank | each1 | 3mm 304 stainless steel. liquid level. pressure display, Shanghai Sipai |
3 | Sugar / water metering valve | each1 | Shanghai Yuan an |
4 | Sugar / water mixing valve | each1 | |
5 | Mixing pump | 1 | Shanghai Yuan an |
6 | Heat Exchanger (Cooler) | 1 | All plate is 304 stainless steel 0.5mm Guangdong Saiwei or Jiangyin Baode |
7 | Refrigerant control valve | 1 | Shanghai Yuan an |
8 | CO2control valve | 1 | Spirax Sarco |
9 | Solenoid Valves and Pneumatic Components | 1set | （AirTAC） |
10 | Electronic components | 1set | Mitsubishi, Schneider etc. |
